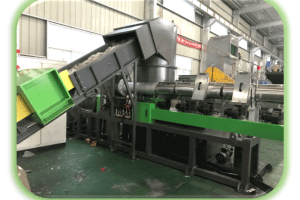

CPP/BOPP film pelletizing line
Recycle Plastic Waste to Make Profit
Our series pelletizing production line integrates crushing compactor and pelletizing ,with high level of automation.With high
feeding efficiency , it is more suitable for large size film to enter the equipment directly without crushing . Intelligent modular
system and onekey for startup and shutdown are secure and stable . We can provide single stage , double stages and
multi-stage structure according to different requirements in order to ensure the excellent quality of the particles.
APPLICABLE MATERIALS
BRIEF DESCRIPTION
The PE/PP Film Woven Bags Die-Face Cutting Pelletizing Line has two kinds of types. One is the RDS Series Single Stage Compacting Die-Face Cutting Pelletizing Line which is used for PE Film, PE bags and PLA Film. If your material is more clean (not dirty), you can use this type. Other is the RSS Series Double Stage Compacting Die-Face Cutting Pelletizing Line which is used for PE Film, PE Bags and PLA Film. Compared with single stage, double stage works more stable, produces more clean and more density granules. We can design the layout according to customers’ workshop.

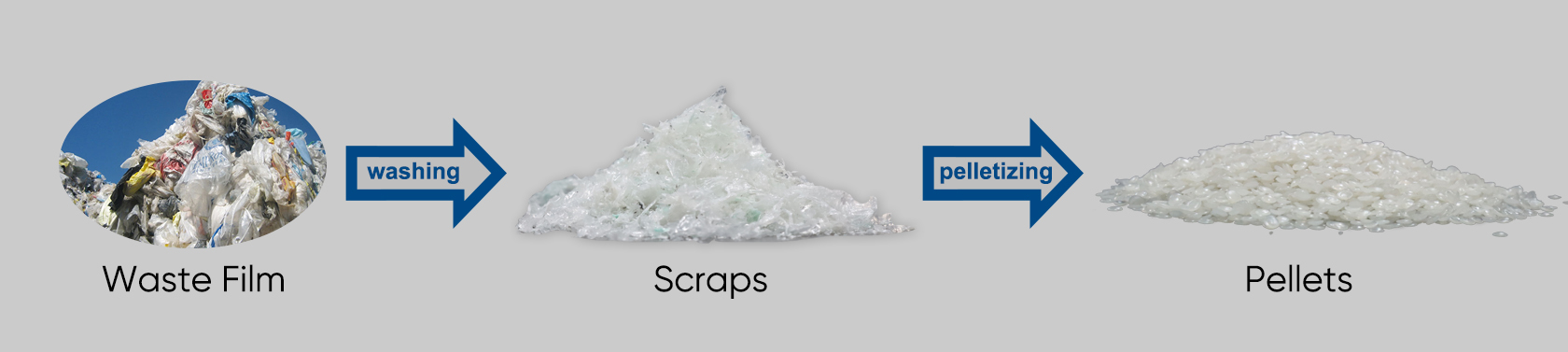

WORKING PROCESS
UNIT INTRODUCTION
Compacting Force Feeder

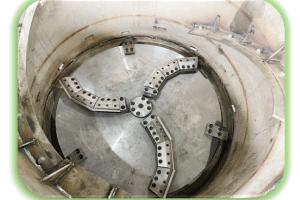

The Blade of Compacting Force Feeder
Single Screw Extruder

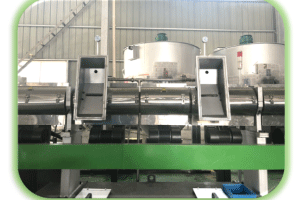

Vacuum Degassing System

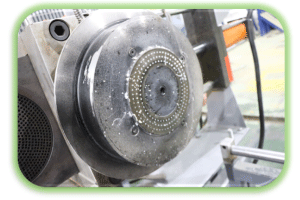

Die Head: Made by 40Cr Material

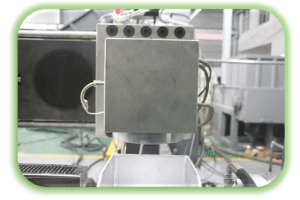

Hydraulic Change Screen: Made by 38CrMnAl

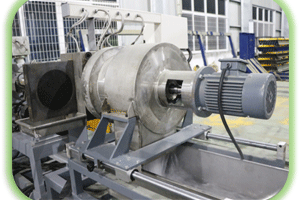

Horizontal Die Face Cutting

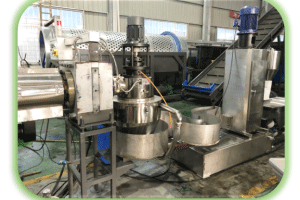

Vertical Dewatering Machine
TECHNICAL DATA
Specification
| Model | GSC2-85/100 | GSC2-100/100 | GSC2-130/130 | GSC2-160/160 | GSC2-180/180 |
| Output(KG/H) | 150-200 | 250-350 | 450-550 | 650-750 | 800-1000 |
| Installed power | 140 | 205 | 290 | 410 | 580 |
| Labor requirements | 2-3 | 2-3 | 2-3 | 3-4 | 4-5 |
| Factpry area(L*W*H) | 10*5*4 | 12*5.5*4 | 14*6.5*4 | 16*6.5*4 | 18*6.5*4.5 |
