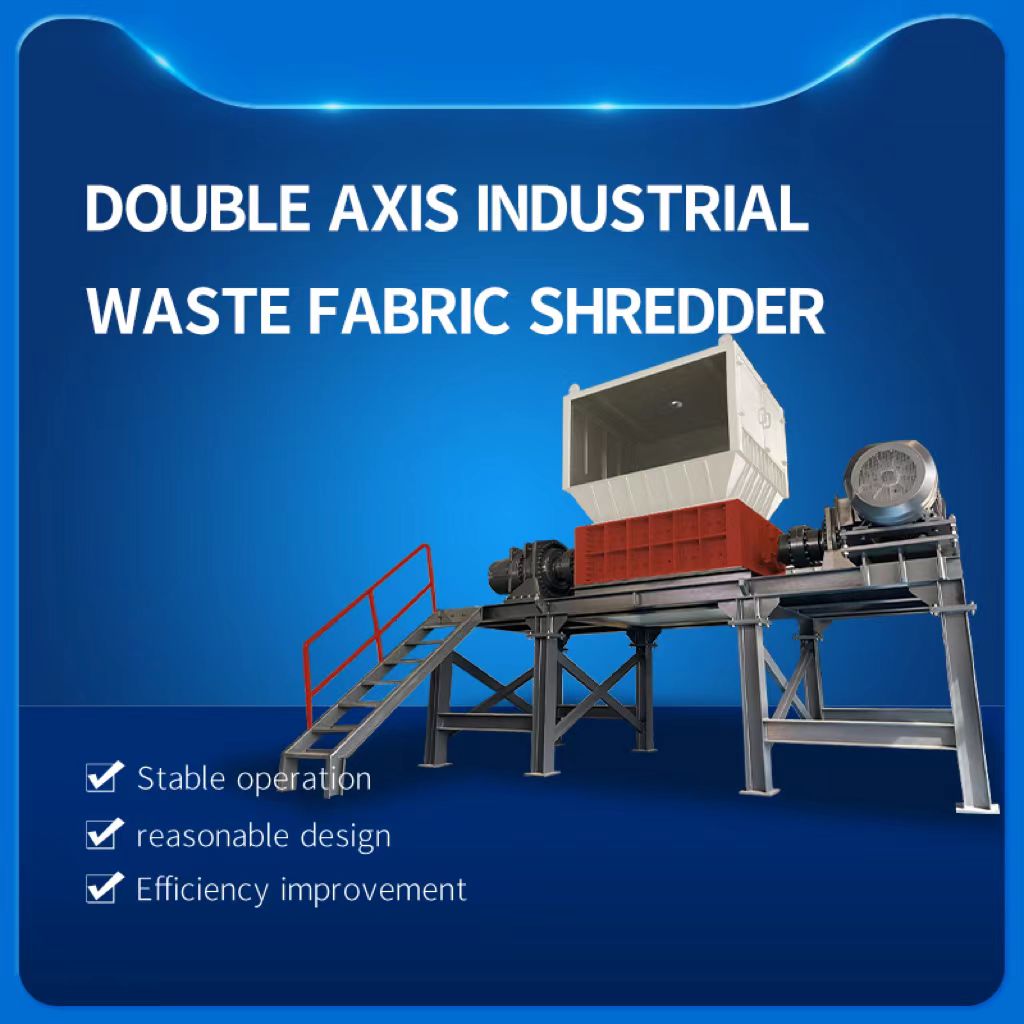

Dual axis industrial waste shredder

  • Plastic barrels, plastic bottles
  • Metal cans, metal barrels
  • Tires, car bumpers, roadblocks, circuit boards
  • Used household appliances like washing machines, refrigerators
  • Biological fertilizers
Get Quotation Now

BRIEF DESCRIPTION

The dual axis industrial waste shredder adopts imported bearings, alloy steel spindles, high-strength cutting tools, and an integral knife box, equipped with an intelligent monitoring system, centralized lubrication system, and hydraulic pressure device, specifically designed for crushing complex industrial waste materials such as waste metal, tires, household appliances, plastics, leather, etc. The simple structure, combined with robust materials and various operational auxiliary systems, gives it an absolute advantage in terms of comprehensive cost-effectiveness such as easy operation, stable operation, crushing effect, and service life.
播放视频

APPLICABLE MATERIALS

Features

    • The motor is connected to the gearbox through a belt pulley, gradually reducing speed, effectively safeguarding both the motor and gearbox.

    • The transmission system employs couplings to connect, alleviating impact forces and ensuring overall structural stability.

    • The integrated or segmented knife options, along with adjustable knife thickness, provide versatility tailored to different materials.

    • Siemens PLC controls the electrical system, ensuring simple operation and safe performance.


UNIT INTRODUCTION

Heavy moving knife with high crushing efficiency, sturdy and durable

The moving blade is made of DC53material, while the fixed blade is made of D2 material, which saves labor and has strong cutting force, demonstrating strong crushing ability.

The iron frame plate is thick and can withstand high torque, making it very sturdy

Welding of the main box, tempering and precision processing after welding, to ensure the strength and assembly accuracy of the box.

High performance components

The spindle and cutting tools are made of high-strength alloy steel material, with high machining accuracy, durability, wear resistance, and long service life; Adopting German standard spline connection method, it has high transmission torque, high positioning accuracy, uniform stress, and strong load-bearing capacity.

Centralized automatic oil injection system

Imported bearings with multiple sealing structures, waterproof, dustproof, and anti fouling, with a longer service life; The automatic oil injection system maintains sufficient oil in the bearings to avoid bearing damage and ensure stable equipment operation.

Intelligent monitoring system

The Gl intelligent monitoring system provides real-time feedback on equipment operation data, automatically alarms and shuts down faults, ensuring safe equipment operation; Equipped with a human-computer interaction interface, making management and operation more convenient, saving manpower and time costs.

Dual drive optional

Option 1: Driven by dual three-phase asynchronous motors and dual planetary reducers, with strong power, high torque, and reliable operation; Option 2:Hydraulic drive, imported core hydraulic components, closed system constant power asynchronous control, adjustable and controllable speed, and large driving force.

TECHNICAL DATA

Equipment model

power（kw）

input speed（r/min）

Overall dimensions（mm）

GS-600

11-22

12-30

2800*1400*1900

GS-800

17-37

12-30

3700*1540*2200

GS-1000

30-45

7-20

3860*1550*2350

GS-1200

37-55

7-20

4200*1650*2400

GS-1400

45-90

10-15

4100*2250*2850

GS-1600

55-132

7-15

4100*2250*2850

GS-2000

75-200

7-12

6000*2800*2900
