Single shaft shredder

Recycle Plastic Waste to Make Profit

This series of double-shaft shredders is suitable for waste recycling requirements in various industries, such as: electronic waste, plastics, metals, wood, waste rubber, packaging barrels, pallets, etc. There are many kinds of recycled materials, and the shredded materials can be directly recycled or further refined according to requirements. This series of double-shaft shredders has the characteristics of low speed, high torque, low noise, etc., and adopts computer PLC programming control system with excellent functions. It can automatically control the start and stop of the equipment, reverse and automatic reverse control after overload.

APPLICABLE MATERIALS

BRIEF DESCRIPTION

This series single shaft shredder is suitable for recycling wide range of materials. It is an ideal machine for plastic, paper, fiber, rubber, organic waste and a wide variety of materials. As per our customers’ requirements, such as the input size of the material, capacity and the final output size etc, we could work out a suitable proposal for our clients. After being shredded by the machine, the output material could be used directly or go into the next step of size reduction. With the function of Siemens microcomputer control system, it is possible to control automatically start, stop, automatic reverse sensors to protect the machine against over loading and jamming. The single-shaft shredder is used to recycle plastic, paper, wood, fiber, cable, rubber, home appliance, light steel, municipal solid waste, etc. It is ideally suited for the reduction of a wide range of different materials.

UNIT INTRODUCTION

Single Shaft Shredder-XR Series

Rotary shaft: The rotary shaft made by high quality carbon steel, anti-worn

Rotor blade: The rotor blade made by D2, fixed on the blades holder by screw easy to remove and maintenance, blade can use 4 times when the blade worn after using long time

Fixed Blade: The fixed blades are movables to adjust and longer time use . Using D2 material, USA Standard, HRC 58-59 more better than SKD-II, We also can use DC53 material

Screen: the screen use 10mm thickness carbon steel made, with 40-100mm screen, the flakes will easy shredding and down

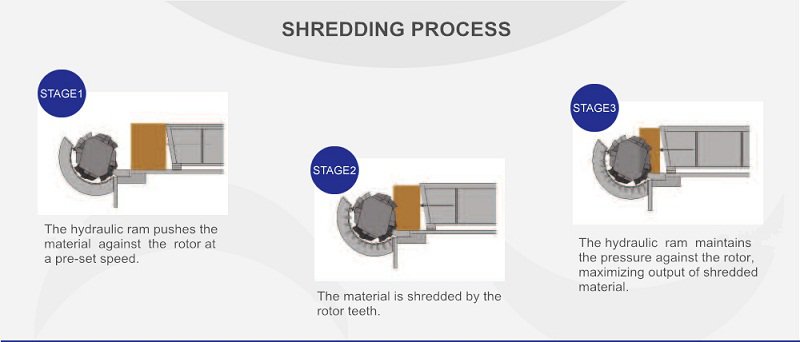

Hydraulic pump station: Oil cylinder effective working. Pushing speed is adjusted by manual

Contactors: Use Schneider brand in us control system

PLC: Use Siemens PLC for shredder machine. Automatic control rotor shaft positive, negative rotary

TECHNICAL DATA


Model


Motor (kw)


Diameter of rotor (mm)


Speed (rpm)


Rotating Knife (pcs)


Fixed Knife (pcs)


Hydraulic Motor power (kw)


Weight (kg)

XR600

22

Φ280

75

26+4

2

2.2

1550

XR700

30 or 37

Φ280

75

32+4

2

3

1950

XR800

45

Φ400

75

34+4

2

3

3500

XR1000

55

Φ400

75

46+4

2

4

4000

XR1200

75

Φ500

75

68+4

2

5.5

5000

XR1500

90 or 110

Φ550

75

84+6

2

7.5

6200

XR2000

132 or 160

Φ600

75

112+6

2

11

7800
